并行编程

Programming with ISPC

• Intel SPMD Program Compiler(ISPC)

• SPMD: single program multiple data

ISPC Keywords:

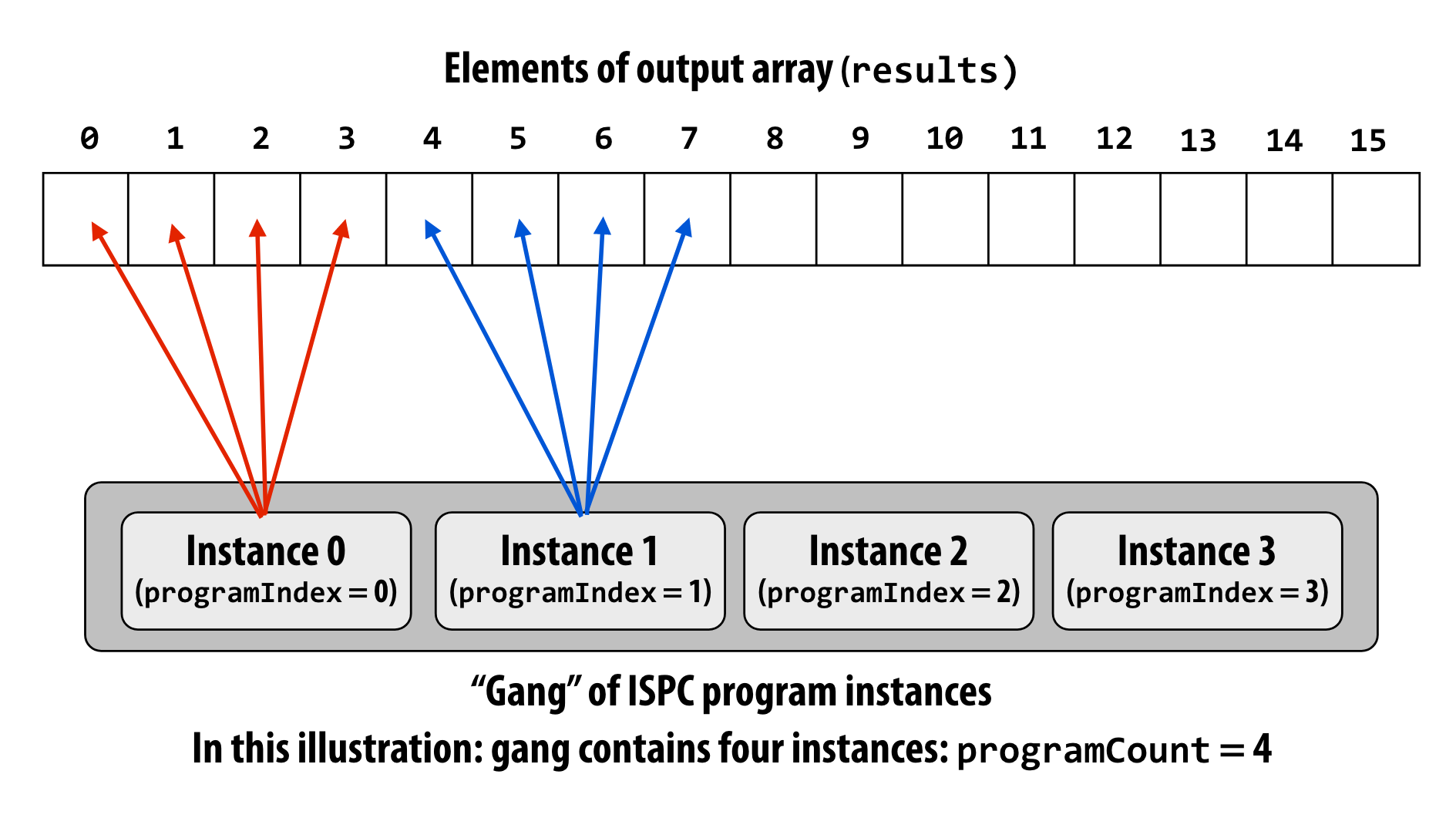

• programCount: number of simultaneously executing instances in the gang(unuform value)

• programIndex: id of the current instance in the gang.(a non-uniform value:"varying")

• uniform: A type modifier. All instances have the same value for this variable. Its use is purely an optimization. Not needed for correctness.

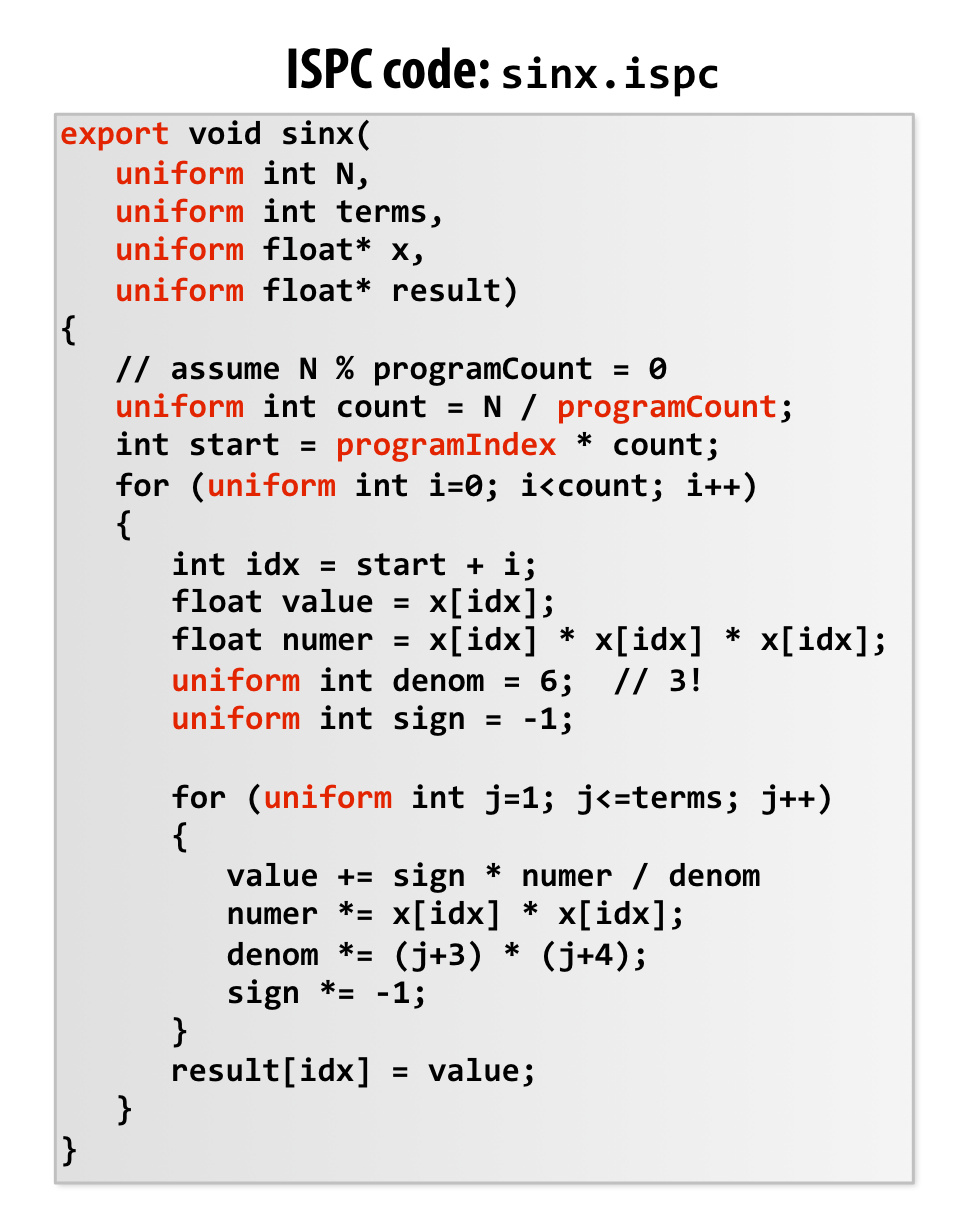

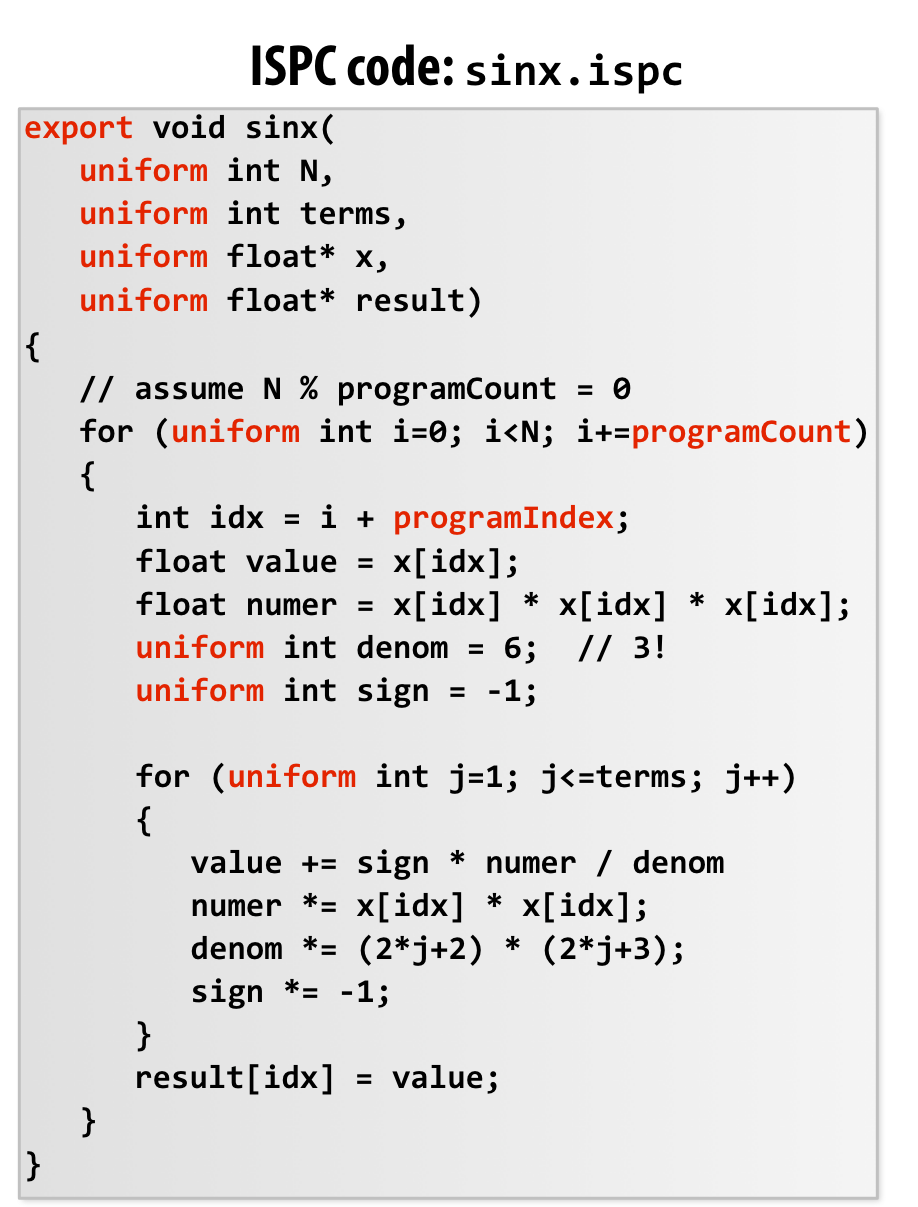

sin(x) in ISPC: version2:

foreach: key ISPC language construct

• foreach declares parallel loop iterations

  • programmer says: these are the iterations the instances in a gang must cooperatively perform

• ISPC implementation assigns iterations to program instances in gang

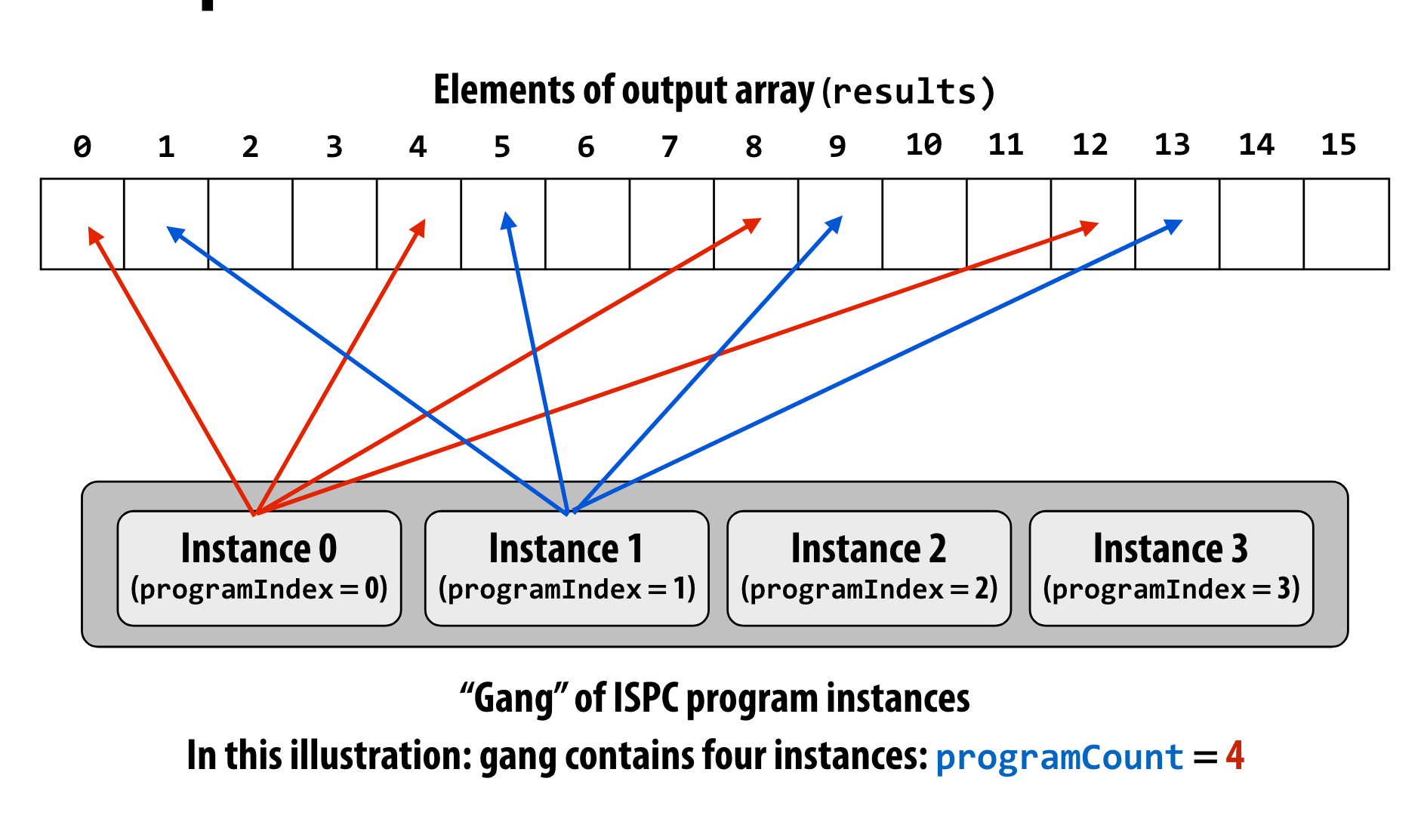

  • Current ISPC implementation will perform a static interleaved assignment(but the abstraction permits a different assignment)

• reduce_add

Three models of communication

Shared address space model

• Threads communicate by reading/writing to shared variables

• Shared variables are like a big bulletin board

• HW implementation of a shared address space

  • SMP: Uniform memorry access time（可能对每个核来说都比较糟糕）

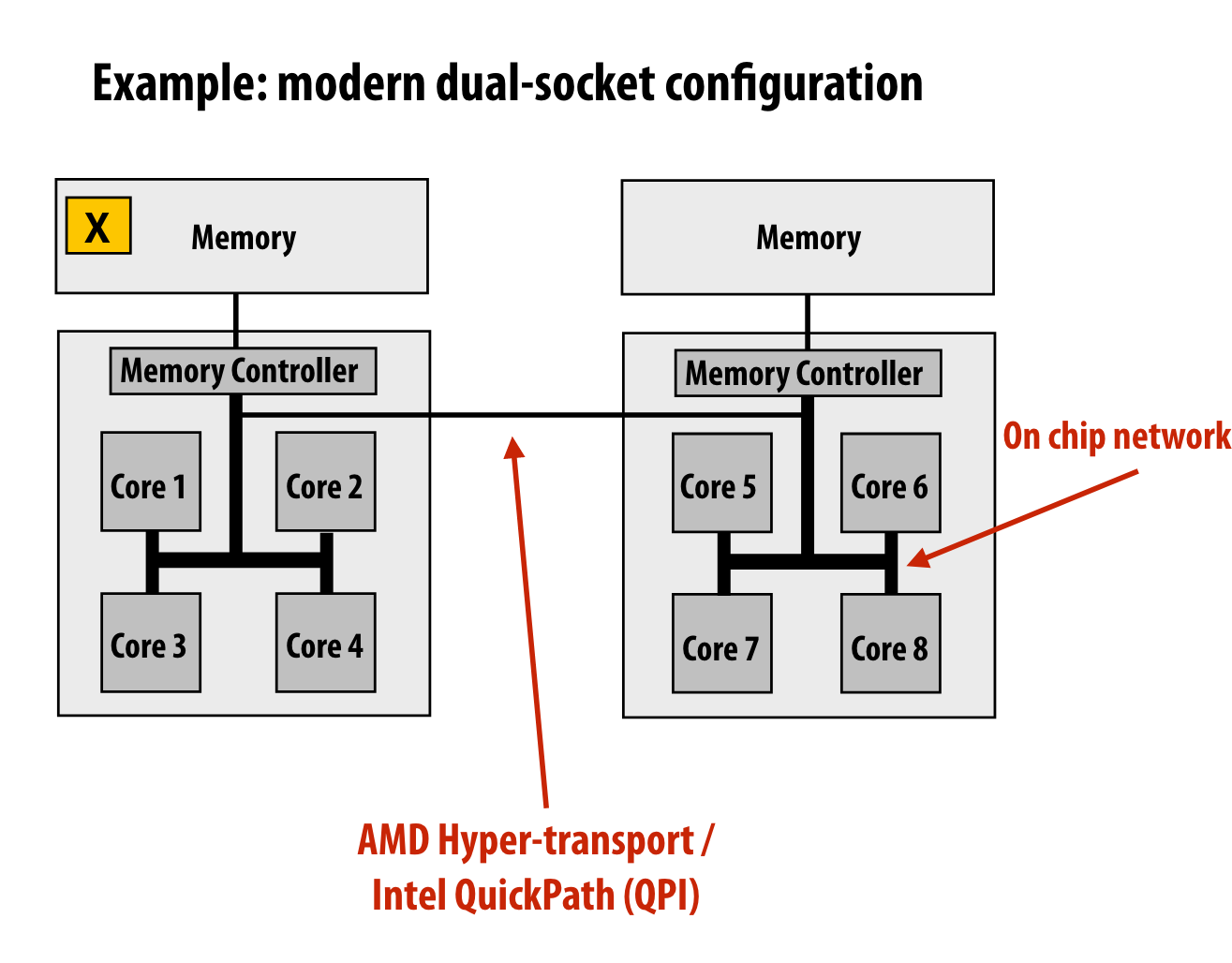

  • Commodity X86 examples：On-Chip Network, Crossbar Switch

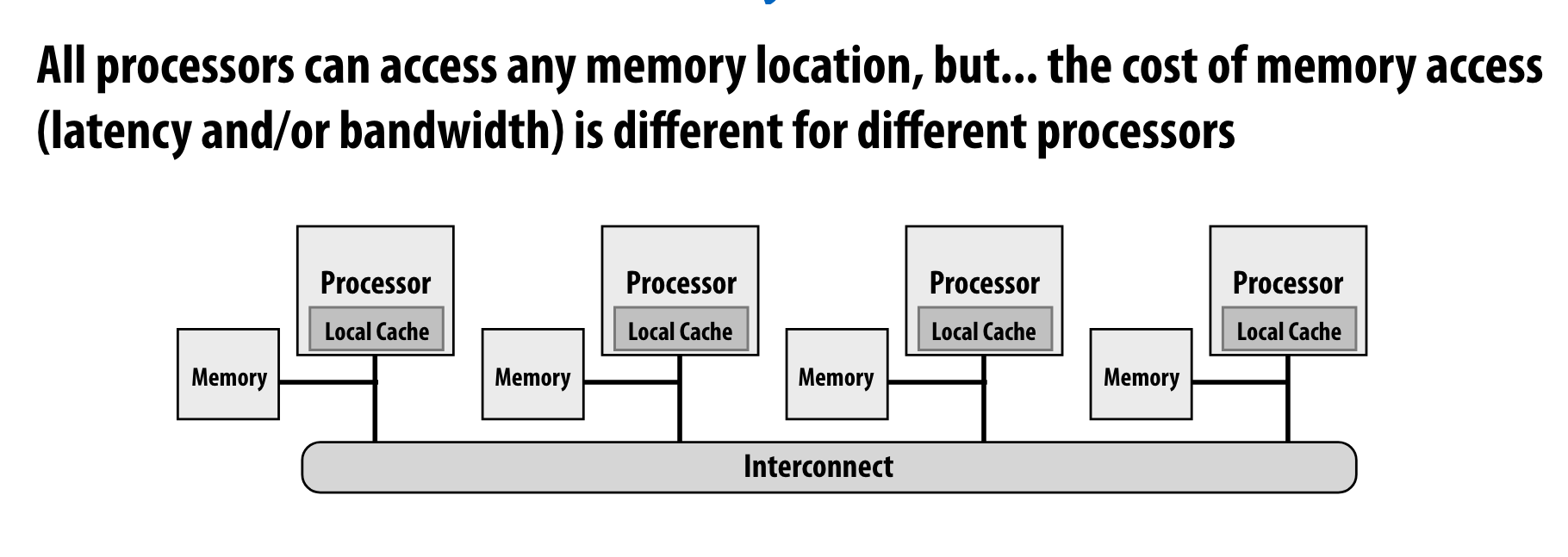

  • Non-uniform memory access(NUMA)：在共享内存时，一些内存的副本可能与其他副本不同

Message passing model of communication

• 线程只有私有数据

• 线程通过 send/receive 消息通信

• Implementation: MPI(message passing interface)

Data-parallel model

可能会产生不确定行为

流编程模型：

• Stream: collections of elements. 元素可以被独立处理

• Kernels: Side-effect-free functions.

• Gather/scatter: two key data-parallel communication primitives.

  • gather(R1, R0, mem_base)
